+86-25-83736569● Wide Frequency Band ● Low Insertion Loss ● High Power、High Isolation ● Custom Design Available ● Low IPM3 ● Rohs Compliant |  |

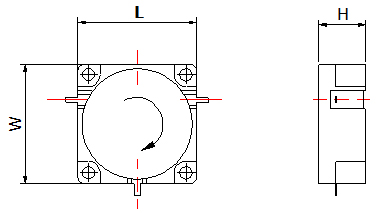

| Model No. 型号 | Frequency Range (GHz) 频率范围 | Band Width (MHz) 工作带宽 | Insertion Loss (dB.Max) 插入损耗 | Isolation (dB.Min) 隔离 | VSWR (Max) 驻波比 | Forward Power (W.Max) 输入功率 | Size L*W*H (mm) 外型尺寸 | Connector Type 连接方式 |
MTH0102B | 0.13~0.18 | 4 | 0.4 | 23 | 1.20 | 300 | 50.8*50.8*15 | TAB |
0.18~0.5 | 10 | 0.3 | 25 | 1.20 | ||||
MTH0302 | 0.14~0.18 | 4 | 0.3 | 23 | 1.20 | 200 | 50*52*18 | TAB |
0.2~0.3 | 20 | 0.4 | 20 | 1.25 | ||||
0.4~0.6 | 70 | 0.3 | 23 | 1.20 | ||||
0.2~0.3 | 20 | 0.4 | 20 | 1.25 | ||||
0.3~0.6 | 70 | 0.3 | 20 | 1.20 | ||||

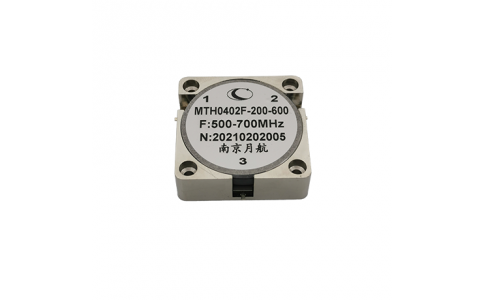

MTH0402F | 0.16~0.24 | 4 | 0.4 | 20 | 1.25 | 200 | 45*45*13 | TAB |
0.4~0.8 | 20 | 0.25 | 25 | 1.15 | ||||
MTH0602A | 0.27~0.47 | 6 | 0.3 | 23 | 1.20 | 150 | 38*38*13 | TAB |
0.47~1.0 | 100 | 0.3 | 23 | 1.20 | ||||
MTH0602C | 0.5~0.6 | 10 | 0.3 | 23 | 1.20 | 100 | 32*32*11 | TAB |
0.6~2.0 | 100 | 0.3 | 23 | 1.20 | ||||
MTH0402B | 0.3~0.4 | 5 | 0.3 | 23 | 1.20 | 150 | 35*38*13 | TAB |
0.4~1.0 | 20 | 0.3 | 23 | 1.20 | ||||
1.0~2.7 | 100 | 0.3 | 23 | 1.20 | ||||
MTH0902B | 0.7~1.2 | 30 | 0.3 | 23 | 1.20 | 50 | 20*20*8.6 | TAB |
960-1215 | Full | 0.5 | 18 | 1.30 | ||||
1.2~3.0 | 100 | 0.3 | 23 | 1.20 | ||||
MTH102A1 | 0.35~0.4 | 10 | 0.3 | 23 | 1.20 | 60 | 25.4*25.4*10 | TAB |
0.4~0.6 | 20 | 0.3 | 23 | 1.20 | ||||
0.8~1.0 | 30 | 0.2 | 25 | 1.15 | ||||
MTH102K6C | 1.5~1.8 | 25 | 0.4 | 20 | 1.25 | 20 | 10*10*6 | TAB |
1.614-1.618 | Full | 0.3 | 25 | 1.20 | ||||
MTH202B | 0.8~1.0 | 30 | 0.3 | 23 | 1.20 | 30 | 19*19*8 | TAB |
1.5~4.2 | 100 | 0.3 | 23 | 1.15 | ||||
1.8~4.2 | 400 | 0.4 | 20 | 1.25 | ||||
MTH202D1 | 824~960 | 20 | 0.4 | 20 | 1.25 | 20 | 12.7*12.7*7.2 | TAB |
962-1213 | Full | 0.8 | 15 | 1.60 | ||||
1.7~3.0 | 70 | 0.3 | 23 | 1.20 | ||||
2.5~5.0 | 200 | 0.3 | 20 | 1.25 | ||||
MTH402C | 3.4~8.0 | 200 | 0.25 | 25 | 1.20 | 10 | 16*22*10 | TAB |
600 | 0.3 | 23 | 1.20 | |||||
MTH402M | 4.4~7.0 | 200 | 0.3 | 23 | 1.20 | 10 | 12.7*12.7*6.4 | TAB |
500 | 0.4 | 20 | 1.25 | |||||
MTH602B | 5.5~12 | 500 | 0.3 | 23 | 1.20 | 10 | 8.9*12.07*5.6 | TAB |
5.725-7.125 | Full | 0.4 | 21 | 1.25 | ||||
MTH702E | 7~18 | 300 | 0.3 | 25 | 1.20 | 10 | 12.7*12.7*6.5 | TAB |
1000 | 0.4 | 23 | 1.20 | |||||
2000 | 0.4 | 20 | 1.25 | |||||
MTH902B | 7~16 | 300 | 0.3 | 25 | 1.20 | 10 | 8.9*12.5*6.5 | TAB |
16~20 | 1000 | 0.4 | 20 | 1.25 | ||||
MTH902E | 7~10 | 500 | 0.4 | 23 | 1.20 | 10 | 9*9*5.5 | TAB |
10~18 | 1000 | 0.4 | 20 | 1.25 | ||||
MTH1202E | 12~18 | 500 | 0.4 | 23 | 1.20 | 10 | 7.6*10*5.4 | TAB |
18~26 | 1000 | 0.5 | 18 | 1.30 | ||||
MTH2030A-W | 26~36 | 2000 | 0.6 | 18 | 1.30 | 5 | 12*15*12.8 | TAB |
备注：以上均为常温下电性能指标
